Steel Chip Crushing And Block Pressing Steel Chip Briquetting Machine
Steel Chip Crushing And Block Pressing Steel Chip Briquetting Machine

Steel Chip Crushing And Block Pressing Steel Chip Briquetting Machine

Quick DetailsPlace of Origin:ChinaCondition:NewWeight (KG):10000Video outgoing-inspection:ProvidedMachinery Test Report:ProvidedMarketing Type:New Product 2020Warranty of core components:1 YearCore Components:Engine, MotorWarranty:1 YearApplicable Industries:Manufacturing PlantShowroom Location:NoneChip material:20CrMnTi, 20MnCr5,30MnVS6Chip form:rolling chip, fine chipProcessing type:wet processingCrushing granularity:about 3-5 cmWater content after drying:<>
Pošlji povpraševanje
Product Overview

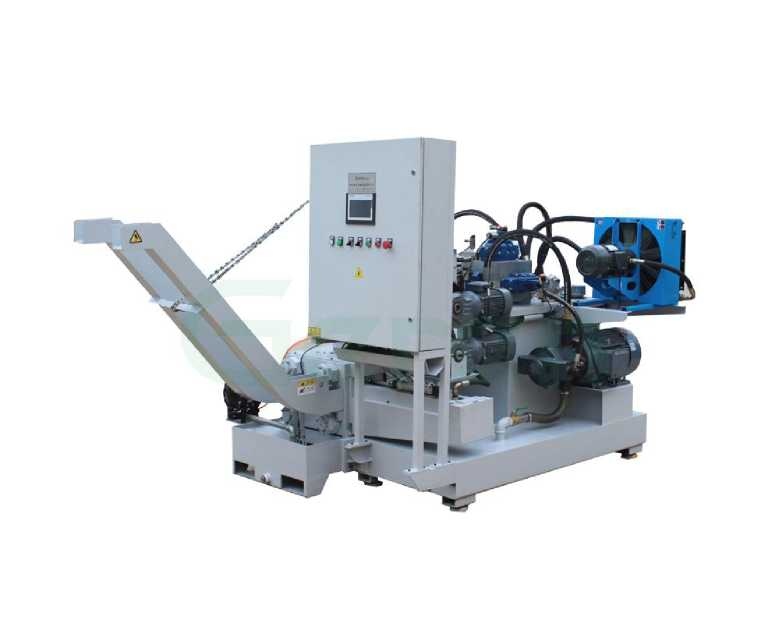

Steel Chips Crushing and Block Pressing Machine

Steel chips expand and loose, occupying a lot of storage space, storage and recycle of these steel chips are not only dangerous,but also cause dirty and messy production environment. The waste chips produced by wet processing contain cutting fluid, which causes pollution to the environment.In order to solve the above problems, these steel chips need to be crushed so as to reduce the volume, dehydration drying, and change the fine chips into block..
FEATURES AT A GLANCE
COMPACT DIMENSIONS
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
HIGH EFFICIENCY
ENVIRONMENT PROTECTION

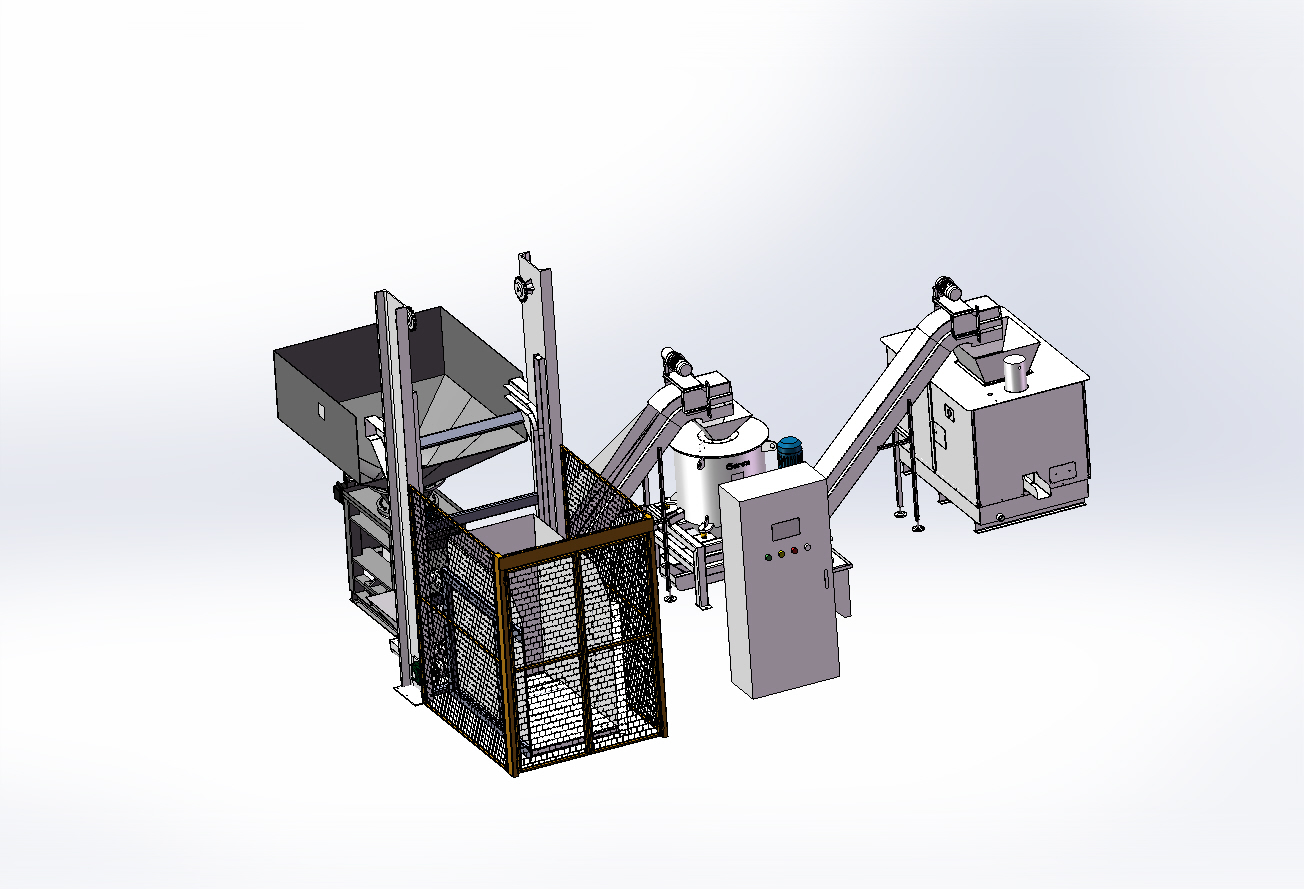

General view
Structure view

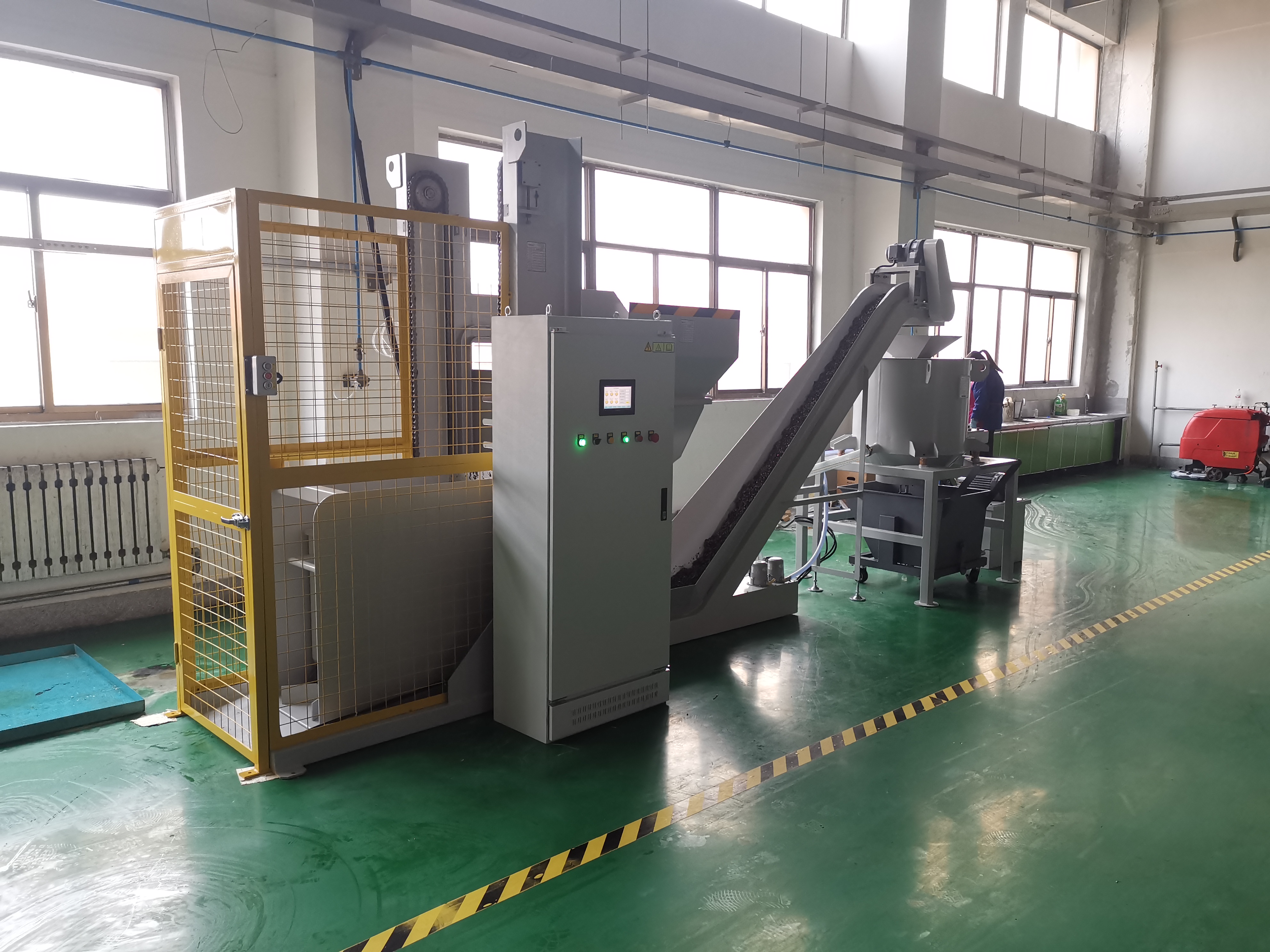

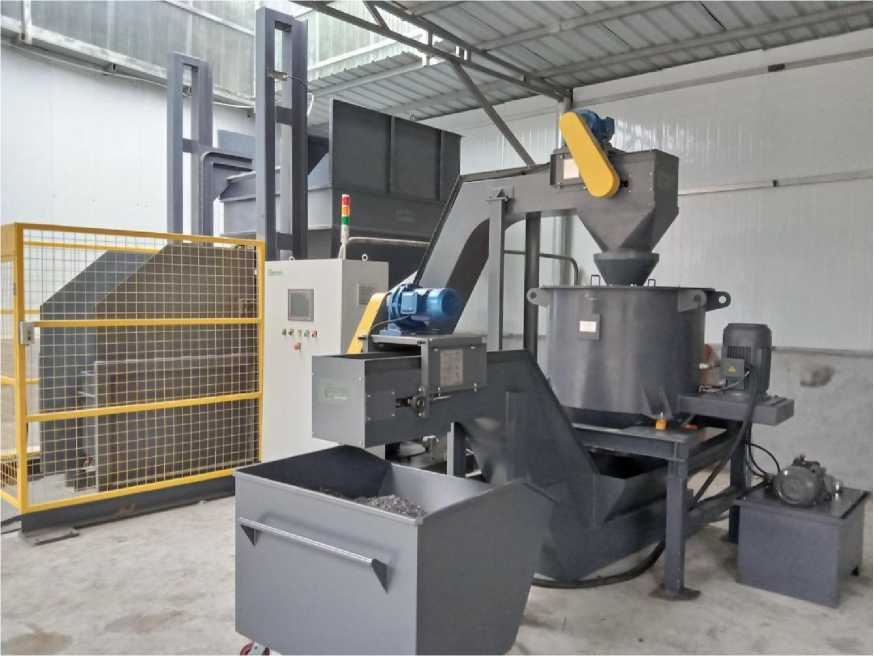

Real view
00:01
00:16
PRODUCT SPECIFICATIONS
No
Item
Data
Unit

1
Total power of equipment
22
KW

2
working voltage
50HZ/380V
V

3
Block pressing ability
600
Kg/h

4
system pressure
25
Mpa

5
Main oil cylinder diameter
Φ350
mm

6
Main piston rod diameter
Φ160
mm

7
Working stroke
300
mm

8
Body shape dimension
2300X2200X 1950
mm

9
Material outlet height
1000
mm

10
Block pressing specification
Φ 110
mm

11
Block pressing frequency
3-4
block /min

12
Block pressing density
4. 5-5. 5
g/cm3

13
Cylinder pressing method
Double holes and double exits


PRODUCT CONFIGURATION
Vertical crushing machine

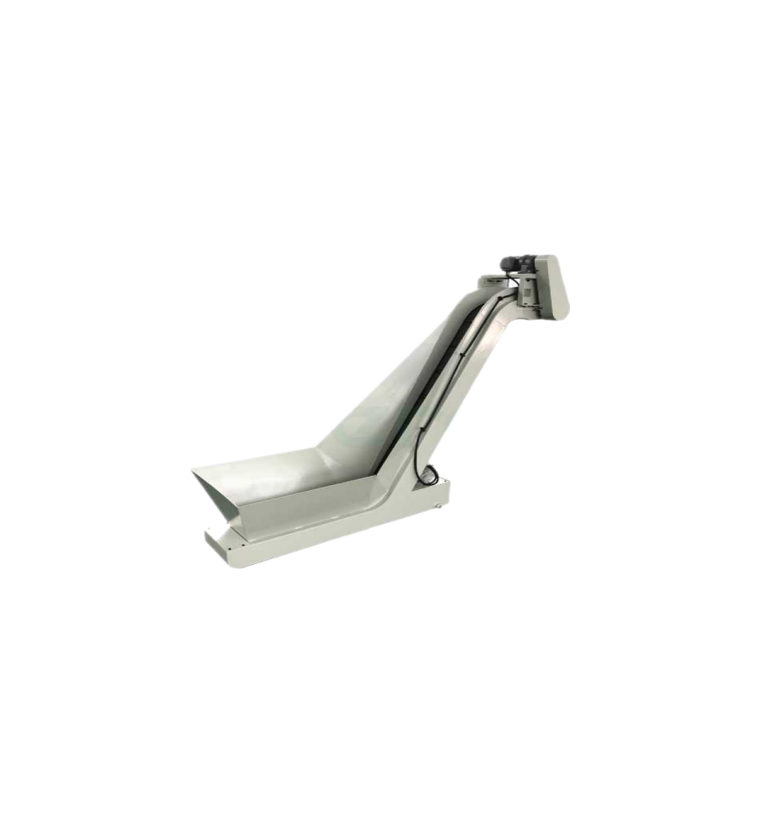

Conveyor

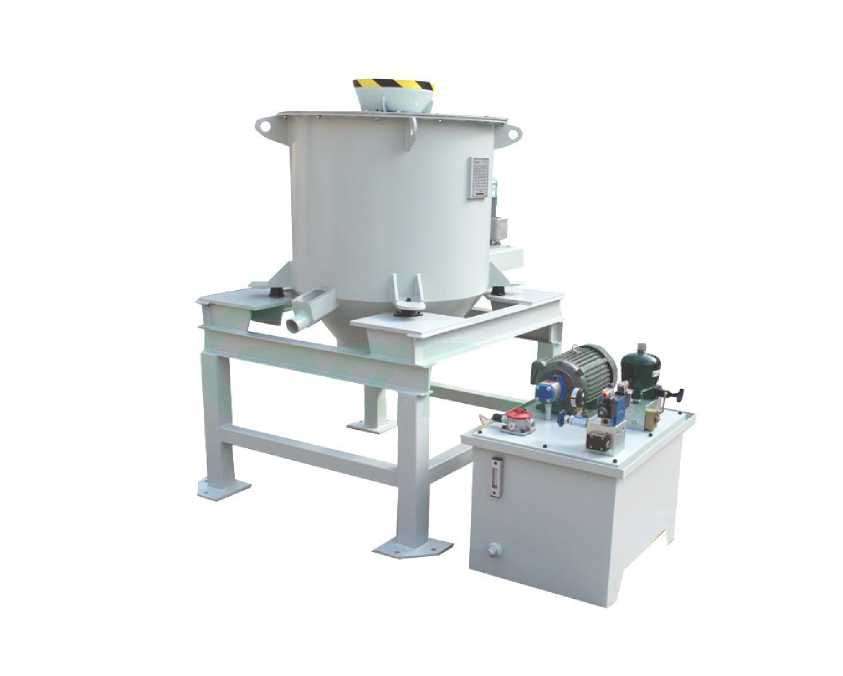

Hydraulic loading machine
Product Description

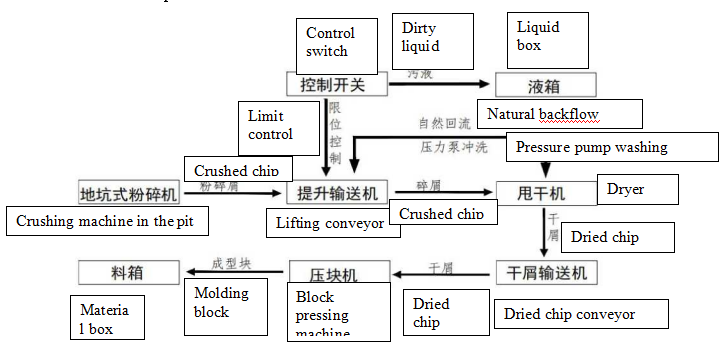

In view of the  problems, we have developed the following solutions:
Equipment required: a set of safety guardrail, a vertical crushing machine, a crushed chip conveyor, a cutting fluid collection box, a hydraulic discharging dryer, a chip conveyor for dried chip, a metal block pressing machine, molding block material box, an electrical control device.
