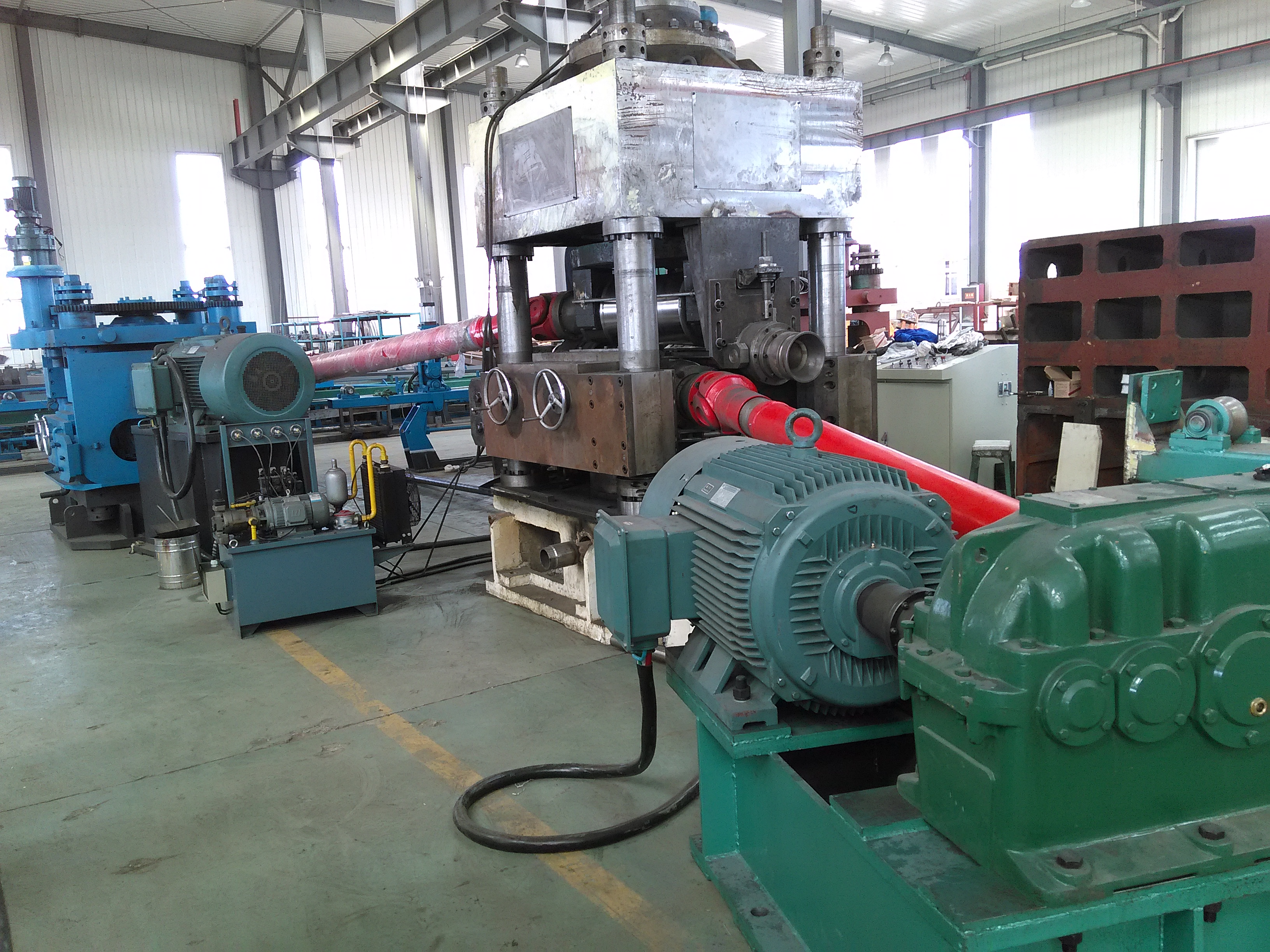

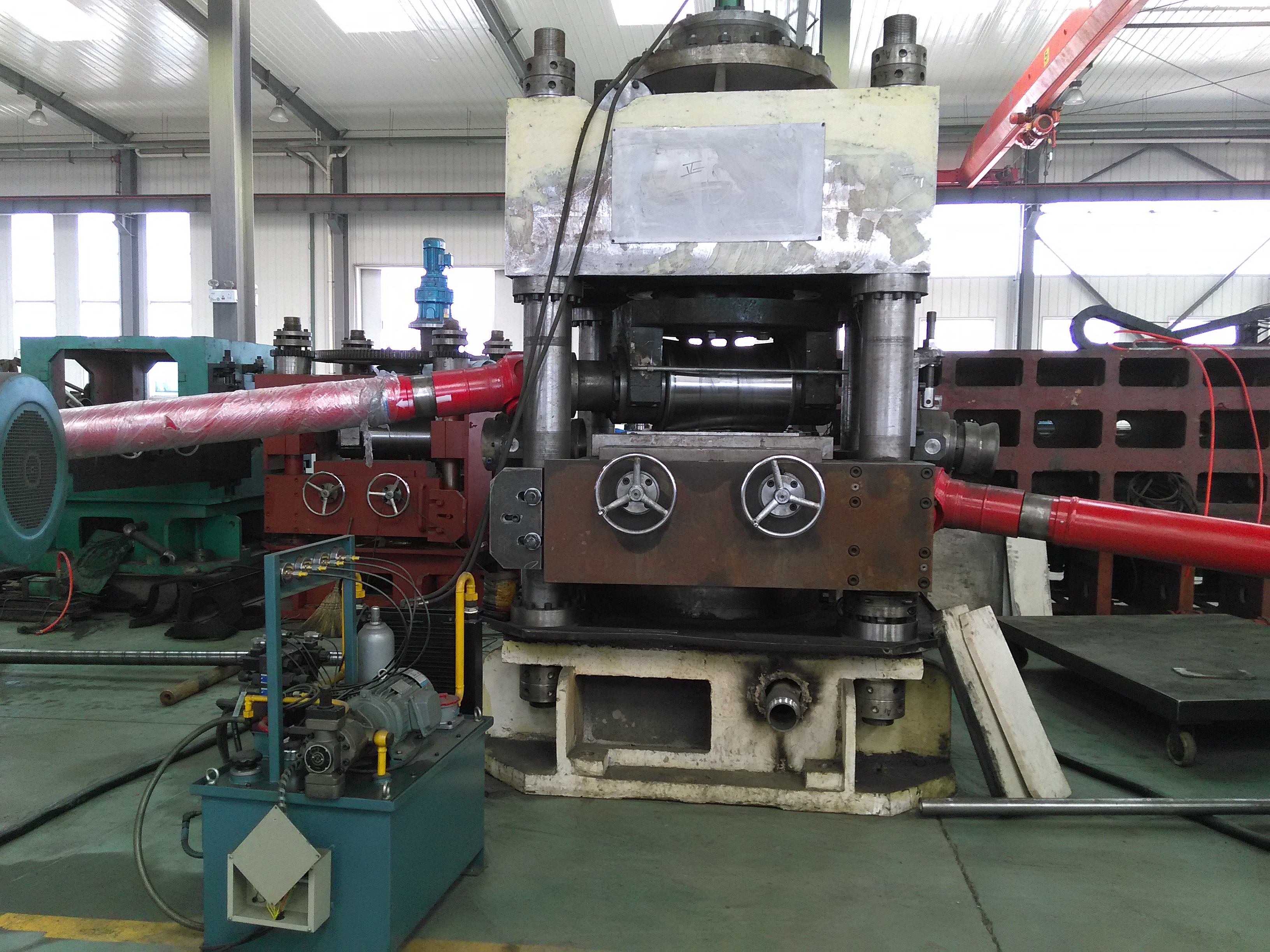

PROFILES STRAIGHTENING MACHINE JY40ZY

STROJ ZA RAVNAVANJE PROFILOV JY40ZY

Hitre podrobnosti Kraj izvora: Shandong, Kitajska Vrsta: Stroj za ravnanje palic. Stanje: nov video odhodni{{0}}inšpekcijski pregled: zagotovljeno poročilo o preskusu stroja: zagotovljena vrsta trženja: vroč izdelek 2019 Garancija na osnovne komponente: 1 leto jedrnih komponent: 75 W Leto, 12 mesecev Ključne prodajne točke: Enostaven za upravljanje Uporabne panoge: Proizvodni obrat Razstavni prostor Lokacija: Brez Poprodajne storitve: Inženirji so na voljo za nadzor na mestu Barva: Prilagojene aplikacije: Avtomobilski sektor Standard: ISO9001}Izobraževanje osebja: Spletna tehnična podpora{8. podpora po garanciji: tehnična podpora za video, spletna podpora Lokalna storitev Lokacija: Brez Teža: 0

Pošlji povpraševanje

Opis izdelka

Opis:

Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction.Our company can also make specified equipment according to customers' requirement.Our service:1. Free quality guarantee period for 12 months, except for wearing parts. 2. Free provide long-term technical support 3. Free train buyer's operator in seller's factory 4. Fast response service within 24 hours 5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.Packaging and shippingwe have much experience in exporting transportation packaging.Taking multi protection measures:The first layerwrapping with foam film and stretch film for the special components, in order to avoid moisture.Second layerinside of plywood box, adopting small square plywood block and strapping belt to fix.Third layerthe machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.Fourth layerin a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

Specifikacija

model		JY40Y
Material	Straightening range（mm）	tensile strength σb Less than or equal to 450（Mpa）	Φ10 Less than or equal to d Less than or equal to Φ40（L Greater than or equal to 2000）
		tensile strength σb Less than or equal to 1000（Mpa）	Φ10 Less than or equal to d Less than or equal to Φ35（L Greater than or equal to 2000）
	Površinska trdota	Manj ali enako HB320
	straightness（mm/m）	Svetla vrstica Manjša ali enaka 3 Črna črta Manjša ali enaka 4
	Toleranca premera	Material za luščenje Manj ali enak H10 material črne palice: d-2-GB/T702-2004
	Zaokroženost	Manj ali enako 50 odstotkov tolerance premera
	Surface roughness（Ra）	Za Bright bar Manj ali enako 3,2-6,3m
Končan izdelek	straightness（mm/m）	Svetla vrstica Manjša ali enaka {{0}}}.25 črna črta Manjša ali enaka 1,0
	Toleranca premera	Svetla palica Manjša ali enaka H10 Črna palica: boljša od gredice.
	Surface Roughness（Ra）	Bright bar Less than or equal to 0.8μm Black bar: better than billet
Št. valjev		2
Diameter of roller（mm）		Φ200
Feeding Speed（Stepless Speed Change）		2-12（m/min）
Main Motor Power（kW）		302
Lifting Motor Power（kW）		1.1
Size（m）（for reference）		Gostiteljski stroj: 5.7X2.0X2.3
weight（t）（for reference）		Gostiteljski stroj: 6.4
Total capacity（kW）（for reference）		65
Compressed air source（Self-prepared ）		0.50,8MPa,1,8m3/min, priložen je dvostopenjski separator oljne vode
